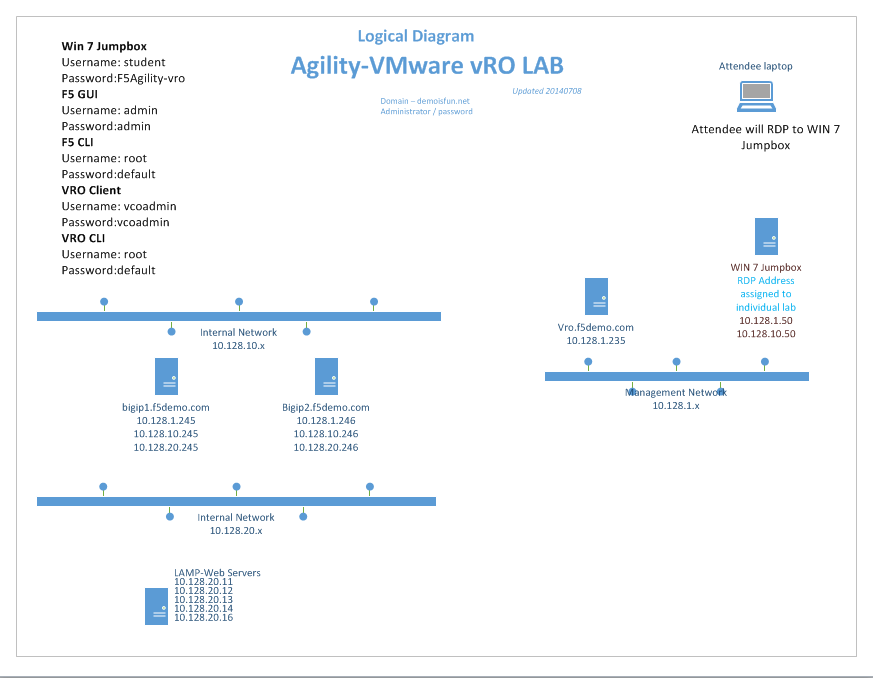

System Information

../_images/image001.png

Win 7 Jump Box

  • External RDP address –Provided by Instructor
  • Management IP: 10.128.1.50

vRO Appliance

  • Hostname vro.fdemo5.com
  • Management IP: 10.128.1.235
  • vRO Main Page: https:// vro.fdemo5.com /vco/
  • SSH Credentials: root/default
  • vRO Control Center: https://vro.f5demo:8283/vco-controlcenter
  • vRO Control Center Credentials: root/default
  • vRO Client Credentials: vcoadmin/vcoadmin

BIG-IP Information

  • BIG-IP SSH Credentials: root/default
  • BIG-IP UI Credentials: admin/admin

BIG-IP 1

  • Hostname bigip1.f5demo.com
  • ManagementIP 10.128.1.245
  • External IP 10.128.10.245/24
  • Internal IP 10.128.20.245/24
  • External Float 10.128.20.247/24
  • Internal
  • HA IP 10.128.30.245/24

BIG-IP 2

  • Hostname bigip2.f5demo.com
  • ManagementIP 10.128.1.246
  • External IP 10.128.10.246/24
  • Internal IP 10.128.20.246/24
  • External Float 10.128.10.247/24
  • Internal Self
  • HA IP 10.128.30.246/24

Lamp Server—Web services

  • 10.128.20.11
  • 10.128.20.12
  • 10.128.20.13
  • 10.128.20.14
  • 10.128.20.15
